NIKKE NZH series
UPLUS ENGINEERING3D Heating Coplarnarity Insepction system
NZH series
3D shape analysis of deformation due to heat by measuring the product when heated with a glass heater (room temperature to 300 ° C)
Development prototype evaluation
Random inspection/quality control of production lines

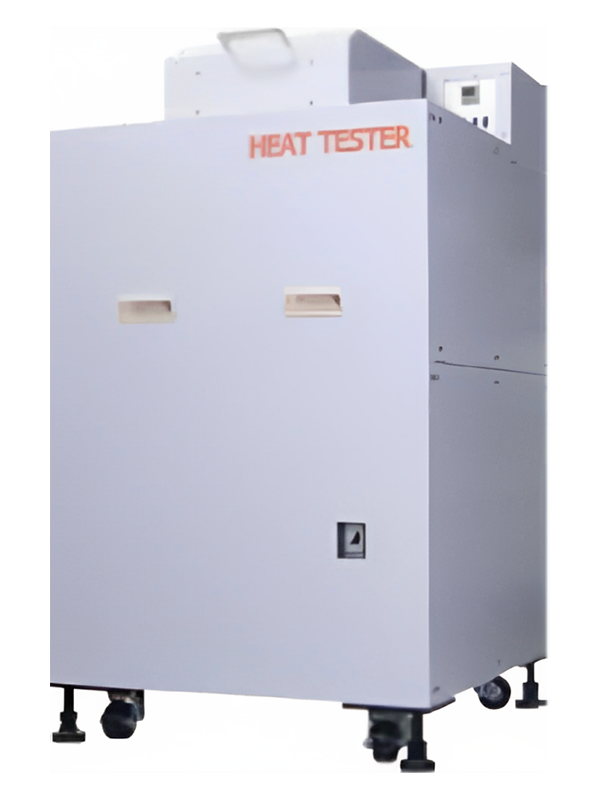

NZH-1000
Size : W680 X D700 X H1205 mm
측정가능 범위 : 50 X 50 mm

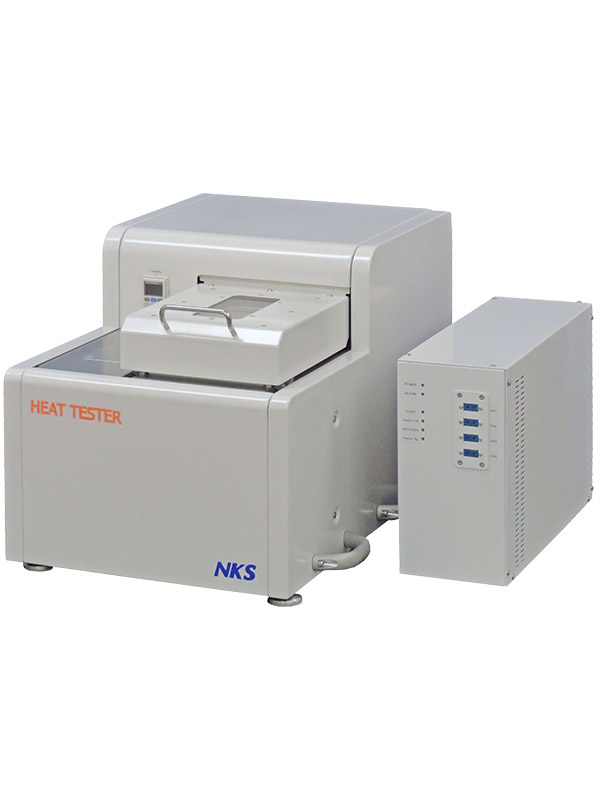

NZH-05X
Size : W400 X D500 X H360 mm
측정가능 범위 : 16.5 X 71 mm
Specification
Product | Heat Tester NZH-1000 | Heat Tester NZH-05X | |
---|---|---|---|
Measure Height | 1mm from Glass surface | ||
Resol. | XY | 7μm | |
Z | 5μm | ||
Inspection Time | Measure | 1.0sec (High speed) / 1.8sec (Standard) | 1.0sec (High speed) |
Anal. | 1.6msec / inspectioin area | ||
Power | AC100V Single phase 50/60Hz 15A | ||
Heationg / Cooling Method | Heat conduction, radiant heat, natural convection method by Glass Heater | ||
Temp. Control / Max Temp. | Temp. Control of Glass Surface / 300℃(max) | ||
Weight | 300Kg | 70Kg |
